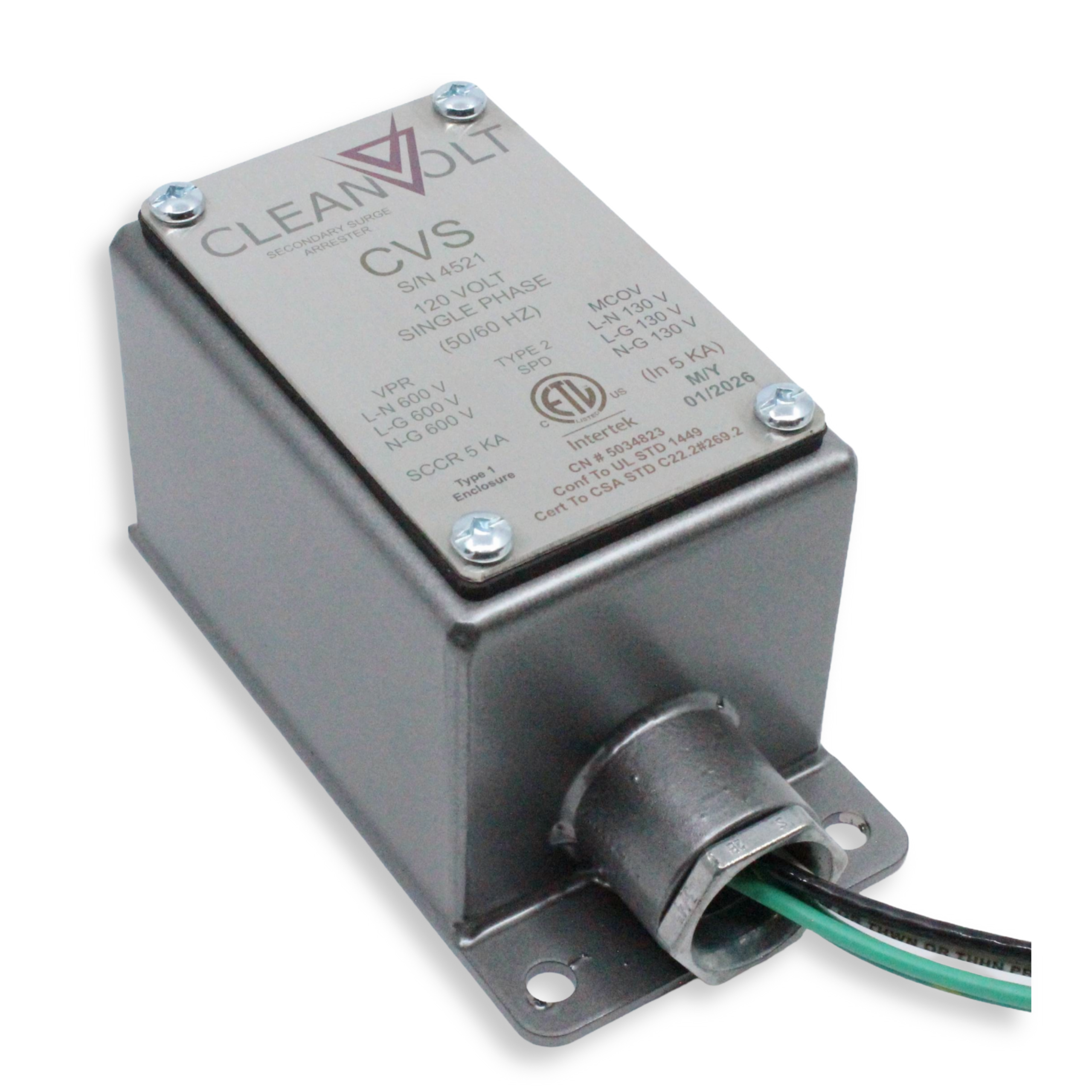

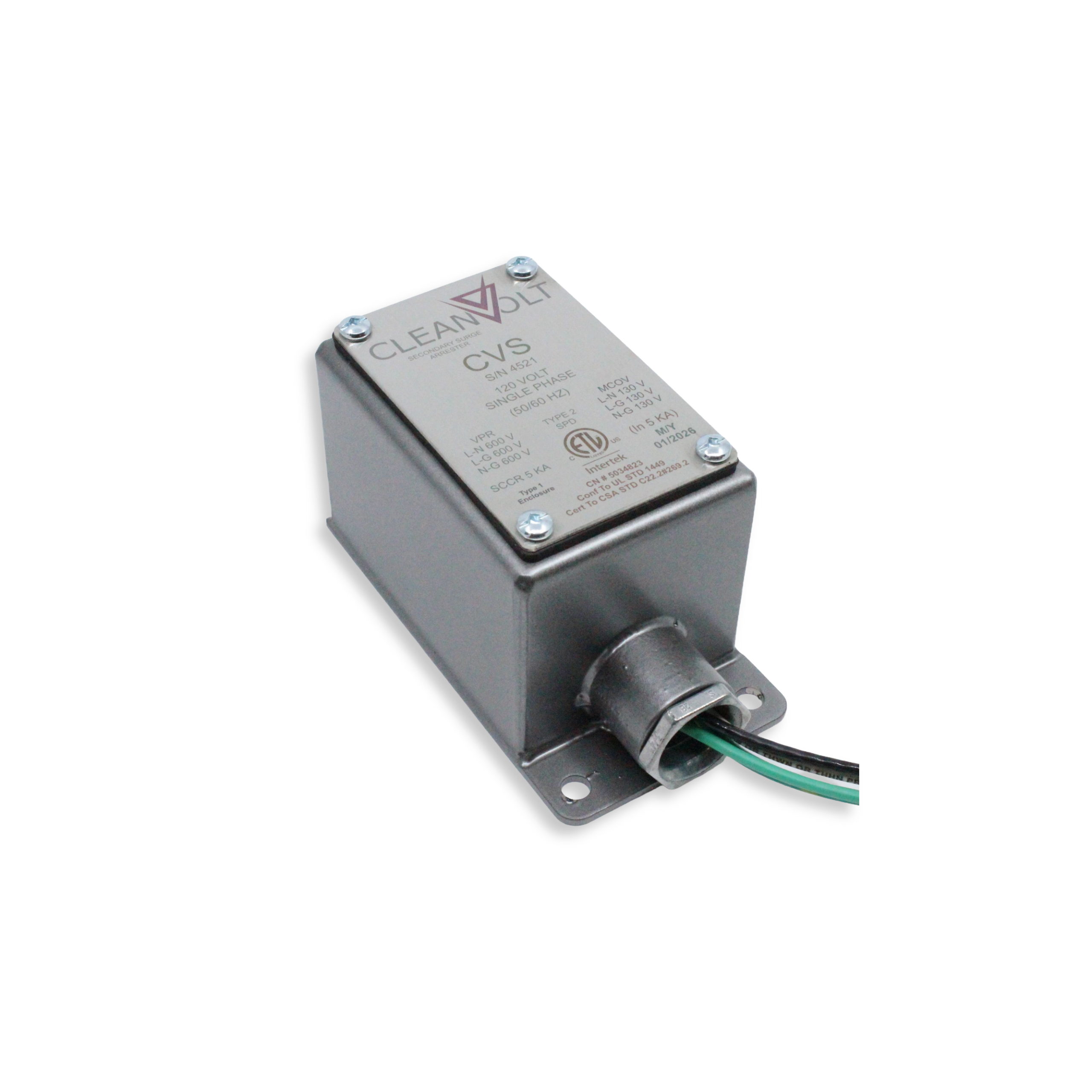

CleanVolt CVS
The Clean Volt™ CVS delivers next-level surge protection for 120v dedicated configurations. This model is used to protect critical step-down voltage within stand alone equipment, ATM machines, traffic lighting systems or any dedicated 120v system where you rely on sensitive electronics.
With an impressively low 130v clamping and ability to attract current surges created by electronics and load cycling, the CVS (120 V) eliminates destructive surges and internally generated electrical noise before it reaches your equipment.
Perfect for industrial automation, agricultural loads, commercial appliances, and dedicated circuits.
Additional Information
| System Voltage | 120v |
|---|---|
| Phase Configuration | 1Ø |
| Max Panel Rating | 600 Amps |
| MCOV | L-N 130v, L-G 130v, N-G 130v |
| VPR | L-N 600v, L-G 600v, N-G 600v |
| Response Time | < 1 ns (connected speed with 6" leads) |
| SCCR | In kA | 5 kA, 5 kA (per phase) |
| Surge Discharge Capacity* | 10,000A (8×20 µs pulse) |
| Technology | All Solid-State Fail-Safe Arrester |
| Certifications | CSA Std. C22.2 #269.2 & UL Std. 1449 5th edition |
| Size | Compact 3.00” x 5.44” x 3.06” |
| Weight | 2.4lbs |
| Warranty | Industry Leading 40-year |
| Recommended Breaker | 1 pole 20 A |
*Discharge capacity was provided by Kearney company division of Kearney National Inc. under IEEE c62.1 Lightning arrester standard.
