Delivering lightning-fast protection ensuring moderate current surges created by harmonic interference are attracted out of the system so they never reach your mission-critical equipment.

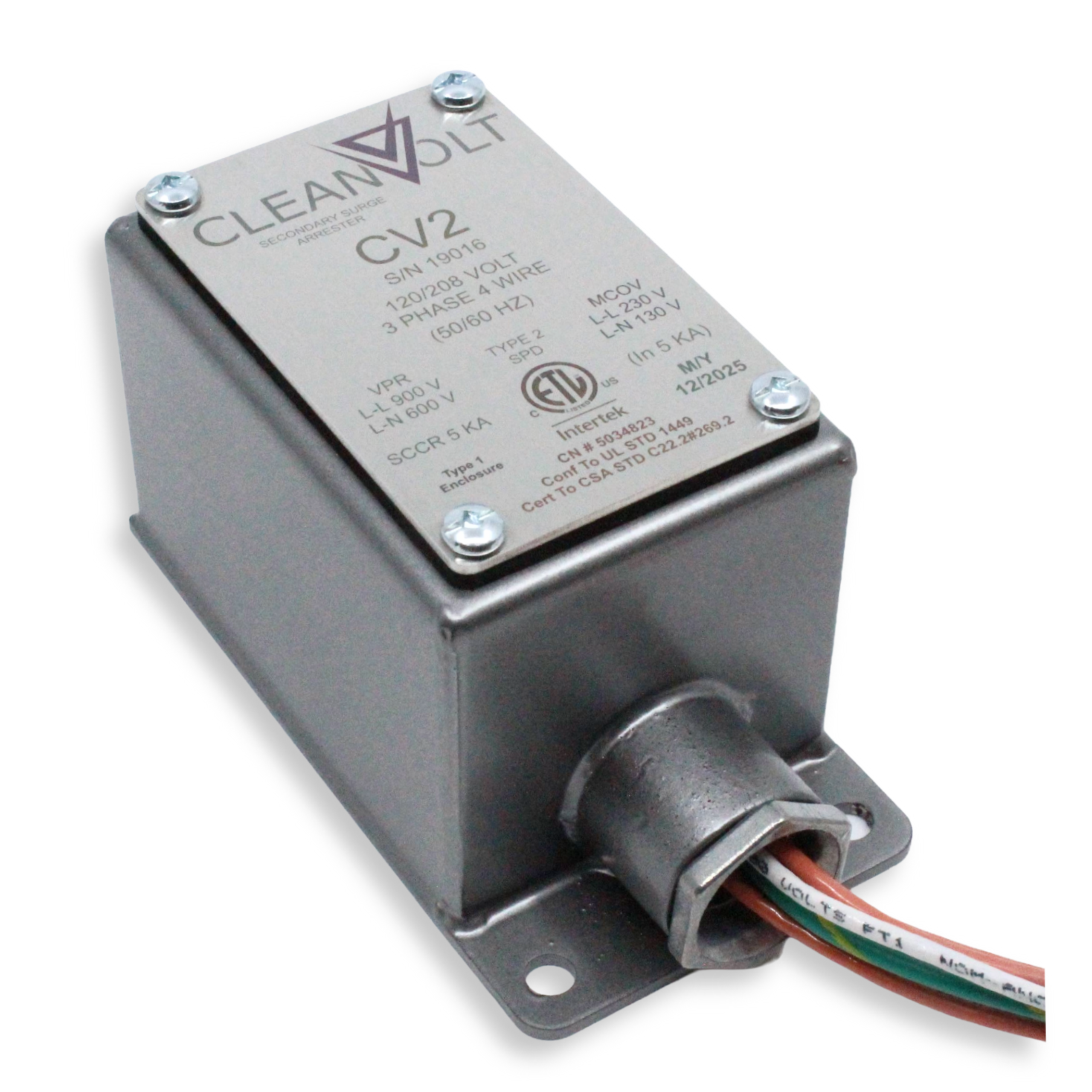

With robust bi-directional protection, fail-safe operation, and the ability to afford the time required for your main overcurrent device to trip in extreme surge events, the CV2 provides the reliability modern facilities demand. Ideal for multi-unit buildings, shops, restaurants, and commercial equipment.
Additional Information
| System Voltage | 120/208v |
|---|---|
| Phase Configuration | 3Ø 4-Wire |
| Max Panel Rating | 1000 Amps |
| MCOV | L-N 130v, L-L 230v |
| VPR | L-N 600v, L-L 900v |
| Response Time | < 1 ns (connected speed with 6” leads) |
| SCCR | In kA | 5 kA, 5 kA (per phase) |
| Surge Discharge Capacity* | 20,000 A (8×20 µs pulse) |
| Technology | All Solid-State Technology Fail-Safe Varistor. |
| Certifications | CSA Std. C22.2 #269.2 & UL Std. 1449 5th edition |
| Size | Compact 3.00” x 5.44” x 3.06” |
| Weight | 2.4lbs |
| Warranty | Industry Leading 40-Year |
| Recommended Breaker | 3 pole 20A |
*Discharge capacity was provided by Kearney company division of Kearney National Inc. under IEEE c62.1 Lightning arrester standard.
