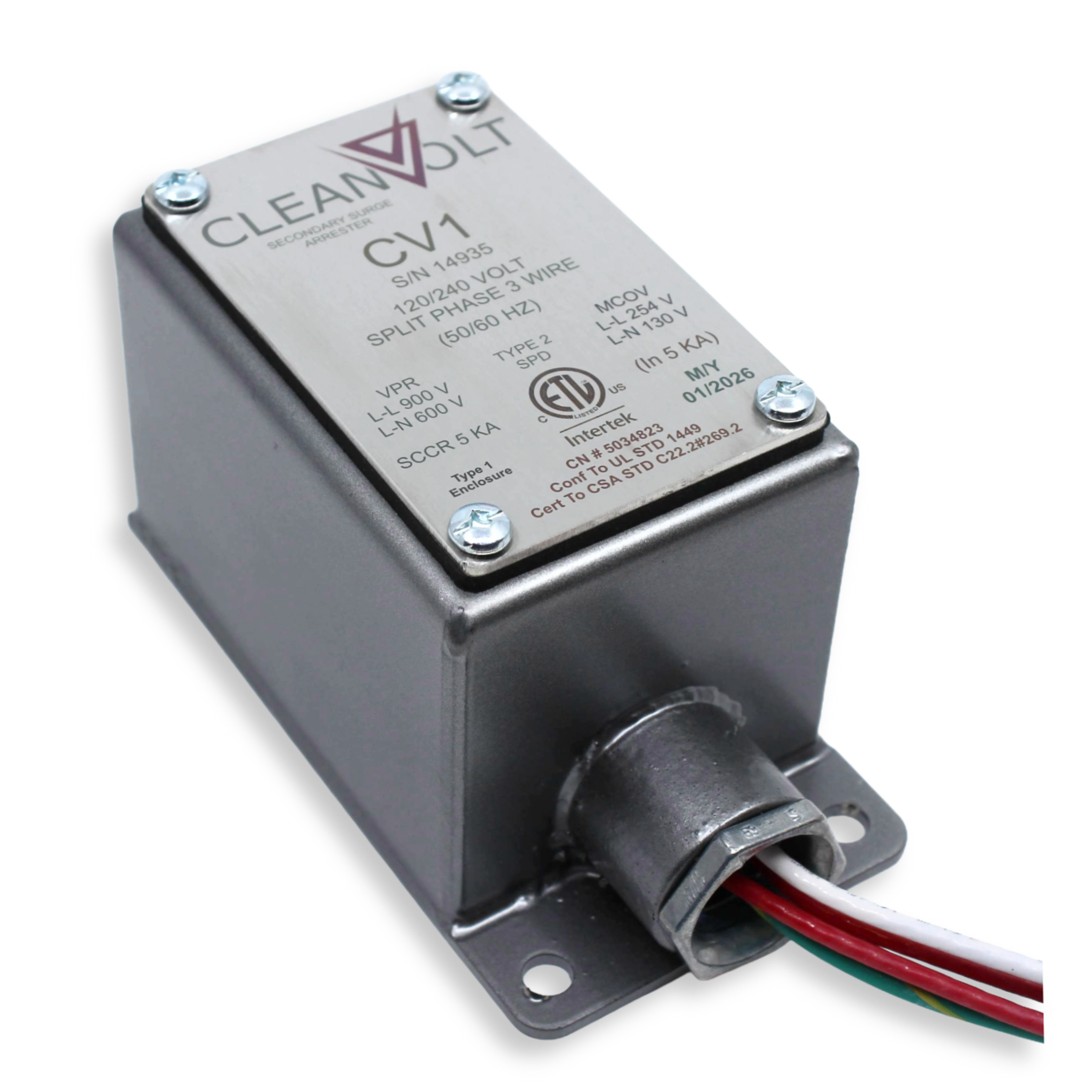

Clean Volt CV1
The Clean Volt™ CV1 is engineered for residential and light commercial systems requiring dependable whole-system surge protection. Provides leading catastrophic protection while also enhancing daily power quality due to the unique ability to attract generated current surges. This is made possible as the CV1 acts with a connected one nanosecond speed which leads the industry.
The CV1 delivers unmatched protection and long-term peace of mind. Backed by a 40-year warranty.
This ultra-responsive protection eliminates moderate surges (the “death by 1,000 cuts”) generated by everyday electronics, while enhancing power quality, reducing heat, stabilizing sine waves, and extending equipment lifespan.
Additional Information
| System Voltage | 120/240v |
|---|---|
| Phase Configuration | 1Ø Split Phase 3-Wire |
| Max Panel Rating | Up to 600 Amps |
| MCOV | L-N 130v, L-L 254v |
| VPR | L-N 600v, L-L 900v |
| Response Time | < 1 ns (connected speed with 6” leads) |
| SCCR | In kA | 5 kA, 5 kA (per phase) |
| Surge Discharge Capacity* | 10,000 A (8×20 µs pulse) |
| Technology | All Solid-State Technology Fail-Safe Varistor. |
| Certifications | CSA Std. C22.2 #269.2 & UL Std. 1449 5th edition |
| Size | Compact 3.00” x 5.44” x 3.06” |
| Weight | 2.4lbs |
| Warranty | Industry Leading 40-year |
| Recommended Breaker | 2 Pole – 20A |
*Discharge capacity was provided by Kearney company division of Kearney National Inc. under IEEE c62.1 Lightning arrester standard.
